Oil temp / press
A round cluster gauge with oil temperature on the left half-scale and oil pressure on the right, with the aircraft's arcs and red lines. On a single it also comes as a C152-style pair of small dials; on a twin you choose engine 1, engine 2, or both.
- Modeled on
- Classic light-aircraft dual oil cluster gauge (temperature and pressure in one round case)
- Category
- Engine and systems
- Size
- 1 cell
- Version
- 1.0 · 2026-10-19
- Plan
- Pro
- Simulators
- MSFS 2020 · MSFS 2024 · X-Plane 11 · X-Plane 12
Variants

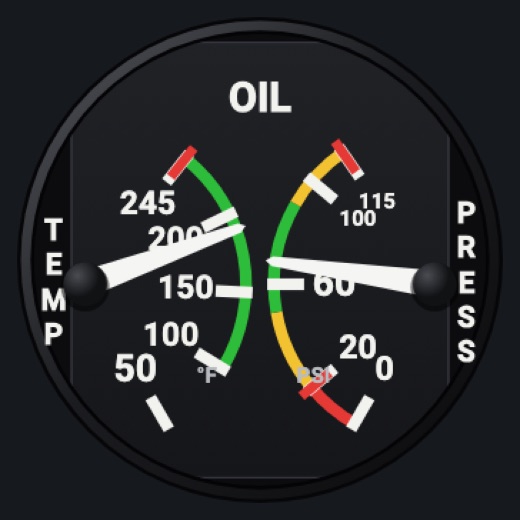

C172 stylev1.0
One round case, TEMP and PRESS half-scales
Picker, FACE: C172 style (single-engine aircraft)

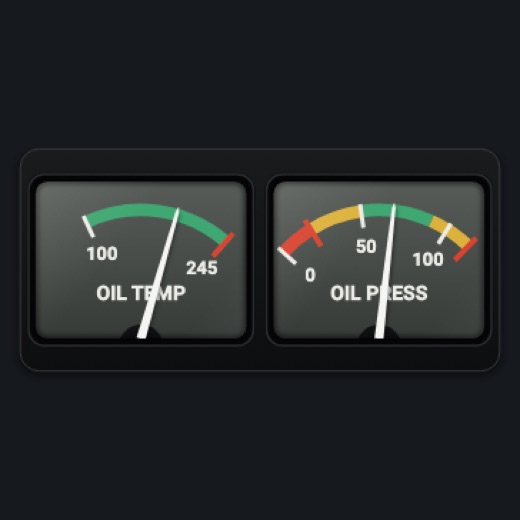

C152 stylev1.0
Two small rectangular dials (the oilMini instrument)
Picker, FACE: C152 style (single-engine aircraft)
Engine 1v1.0
Twin only: the left engine
Picker, ENGINE: Engine 1

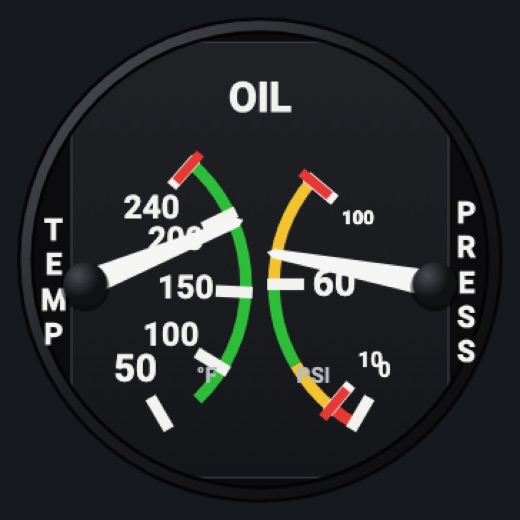

Engine 2v1.0
Twin only: the right engine (oilT2, oilP2)
Picker, ENGINE: Engine 2

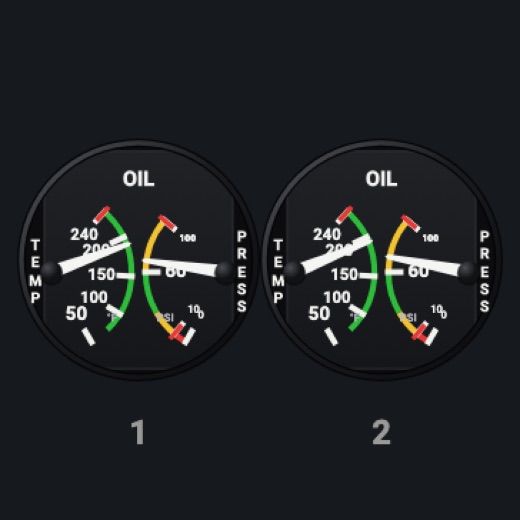

Bothv1.0
Twin only: two half-size gauges side by side, numbered 1 and 2
Picker, ENGINE: Both
Features
- TEMP (°F) and PRESS (PSI) half-scales in one round case
- Green and yellow bands, red low and red high lines from the profile
- Numbers at the min, the red lines and round values
- Twin: engine 1, engine 2, or both
- Red X when oil pressure or temperature is missing or stale
- Realistic needles (Settings): spring and vibration
- Night lighting: the face takes the panel's red flood light, the glareshield's warm light from above (stronger for instruments higher on the page) and its own light, a lamp hidden at the top of the case lighting the dial downward (Settings > Dimmers: Red flood light, Glareshield, Instruments (analog))
Your aircraft: Scales, bands and red lines from the profile. On a twin the FACE choice is replaced by the ENGINE choice. A generic profile (an aircraft the Hub doesn't know) gets wide default scales with no bands or red lines (0-150 PSI, 0-300 °F).
On the iPad
- No knobs: a tap on the face asks to change the instrument
Settings
- FACE (single-engine aircraft): C172 style, C152 style
- ENGINE (twin aircraft): Engine 1, Engine 2, Both
- Global: Realistic needles
Simulator data
What the Hub reads from the simulator for this instrument, and what the instrument sends back. Names are the simulators' own: MSFS SimVars and events, X-Plane datarefs and commands.
Reads
| Value | MSFS | X-Plane |
|---|---|---|
| Oil temperature, engine 1 (degF) | GENERAL ENG OIL TEMPERATURE:1 (fahrenheit) | sim/cockpit2/engine/indicators/oil_temperature_deg_C[0]sim/aircraft/engine/acf_max_OILT |
| Oil pressure, engine 1 (psi) | GENERAL ENG OIL PRESSURE:1 (psi) | sim/cockpit2/engine/indicators/oil_pressure_psi[0] |
| Oil temperature, engine 2 (degF) | GENERAL ENG OIL TEMPERATURE:2 (fahrenheit) | sim/cockpit2/engine/indicators/oil_temperature_deg_C[1]sim/aircraft/engine/acf_max_OILT |
| Oil pressure, engine 2 (psi) | GENERAL ENG OIL PRESSURE:2 (psi) | sim/cockpit2/engine/indicators/oil_pressure_psi[1] |
Add-on aircraft with their own systems may use other variables; the Hub reads the standard ones.
Changes
The instrument's version counts what its faces share (the case, the mechanism, the data, the sounds); a face's own version counts that face alone.
- 1.0 2026-10-19
- First numbered version.
