KAP 150-style autopilot
A Bendix/King KAP 150-style autopilot: the KC 191 mode controller with its amber legends, mode keys and the vertical trim rocker. It engages and switches the simulator's autopilot modes from the iPad; the KFC 150 with a flight director is offered as the second model.
- Modeled on
- Bendix/King KAP 150 (KC 191 mode controller)-style
- Category
- Autopilots
- Size
- 2 × 1 cells
- Version
- 1.0 · 2026-10-19
- Plan
- Pro
- Simulators
- MSFS 2020 · MSFS 2024 · X-Plane 11 · X-Plane 12
Variants
KAP 150 (KC 191)v1.0

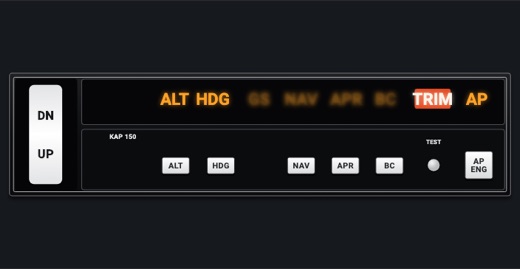

Autopilot only: ALT, HDG, NAV, APR, BC, AP ENG, TEST and the trim rocker; no FD key or legend
Picker: MODEL > KAP 150 (KC 191)
KFC 150 with FD (KC 192)v1.0

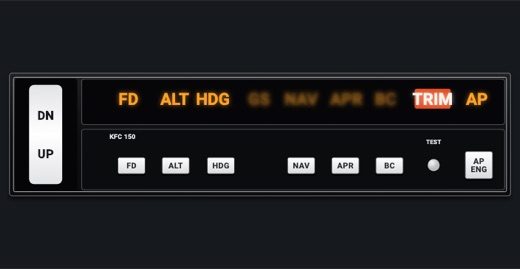

Adds the FD key and the FD legend (flight director); label reads KFC 150
Picker: MODEL > KFC 150 with FD (KC 192)
Features
- Amber gas-discharge-style legends for ALT, HDG, GS, NAV, APR, BC and AP, lit while the mode is engaged (GS when the glideslope is captured)
- TRIM annunciator (white on red-orange) lit at power-up until you run the TEST, as the real unit's preflight test
- TEST button: all legends on for 1.5 s, then TRIM flashes, then AP flashes, about six seconds in all
- AP legend flashes for five seconds when the autopilot disengages
- White DN / UP vertical trim rocker in its recess: holding it repeats
- AP ENG key to engage or disengage the autopilot
- At night the faceplate and keys take the red flood light, while the legends keep their own color, dimmed
- Thin 2 x 1 unit: stackable with another thin module or rackable
On the iPad
- Tap ALT, HDG, NAV, APR or BC to toggle that mode
- Tap AP ENG to engage or disengage the autopilot
- Press the top (DN) or bottom (UP) half of the trim rocker; hold it to keep stepping (every 0.3 s)
- Tap the small TEST button to run the annunciator test (display only, nothing sent to the sim)
Settings
- Model: KAP 150 (KC 191) or KFC 150 with FD (KC 192) (picker variant)
Keys and controllers
Map any of these to a key, a game controller's button or axis, or a MIDI knob (how):
- Autopilot AP
- Autopilot FD
- Autopilot YD
- Autopilot HDG
- Autopilot NAV
- Autopilot APR
- Autopilot BC
- Autopilot ALT
- Autopilot VS
- Autopilot FLC
- Autopilot LVL
- Autopilot UP / DN +
- Autopilot UP / DN -
- Altitude +
- Altitude -
- Altitude sync
Simulator data
What the Hub reads from the simulator for this instrument, and what the instrument sends back. Names are the simulators' own: MSFS SimVars and events, X-Plane datarefs and commands.
Reads
| Value | MSFS | X-Plane |
|---|---|---|
| Autopilot modes, one bit each (ApBit: ap, fd, yd, hdg, nav, apr, bc, alt, vs, flc, lvl, gs, vnv) (bitfield) | AUTOPILOT MASTER (bool)AUTOPILOT FLIGHT DIRECTOR ACTIVE (bool)AUTOPILOT YAW DAMPER (bool)AUTOPILOT HEADING LOCK (bool)AUTOPILOT NAV1 LOCK (bool)AUTOPILOT APPROACH HOLD (bool)AUTOPILOT BACKCOURSE HOLD (bool)AUTOPILOT ALTITUDE LOCK (bool)AUTOPILOT VERTICAL HOLD (bool)AUTOPILOT FLIGHT LEVEL CHANGE (bool)AUTOPILOT WING LEVELER (bool)AUTOPILOT GLIDESLOPE HOLD (bool) | sim/cockpit2/autopilot/servos_onsim/cockpit2/autopilot/flight_director_modesim/cockpit2/switches/yaw_damper_onsim/cockpit2/autopilot/heading_statussim/cockpit2/autopilot/nav_statussim/cockpit2/autopilot/approach_statussim/cockpit2/autopilot/backcourse_statussim/cockpit2/autopilot/altitude_hold_statussim/cockpit2/autopilot/vvi_statussim/cockpit2/autopilot/speed_statussim/cockpit2/autopilot/roll_statussim/cockpit2/autopilot/glideslope_status |
Sends
| When you… | MSFS | X-Plane |
|---|---|---|
| Mode keys and AP ENG, with the ApBit of the key (alt, hdg, nav, apr, bc, ap) | AP_MASTERTOGGLE_FLIGHT_DIRECTORYAW_DAMPER_TOGGLEAP_PANEL_HEADING_HOLDAP_NAV1_HOLDAP_APR_HOLDAP_BC_HOLDAP_ALT_HOLDAP_PANEL_VS_HOLDFLIGHT_LEVEL_CHANGEAP_WING_LEVELER | sim/autopilot/servos_togglesim/autopilot/fdir_togglesim/systems/yaw_damper_togglesim/autopilot/headingsim/autopilot/NAVsim/autopilot/approachsim/autopilot/back_coursesim/autopilot/altitude_holdsim/autopilot/vertical_speedsim/autopilot/level_changesim/autopilot/wing_leveler |
| Trim rocker: DN sends -1, UP sends +1, repeated while held | AP_VS_VAR_SET_ENGLISHAP_SPD_VAR_SETAP_PITCH_REF_INC_UPAP_PITCH_REF_INC_DN | sim/cockpit2/autopilot/vvi_dial_fpmsim/cockpit2/autopilot/airspeed_dial_kts_machsim/autopilot/nose_upsim/autopilot/nose_down |
Add-on aircraft with their own systems may use other variables; the Hub reads the standard ones.
Changes
The instrument's version counts what its faces share (the case, the mechanism, the data, the sounds); a face's own version counts that face alone.
- 1.0 2026-10-19
- First numbered version.
