Engine gauges (4 in 1)

Four engine gauges in one cell. The C172 face puts the 172's four round cluster gauges together (fuel quantity, EGT / fuel flow, oil, suction / amps); the C152 face its four small dials (fuel left and right on top, oil temperature and pressure below).

Modeled on: Four engine gauges in one cell: the C172's round cluster gauges, or the C152's small rectangular dials
Category: Engine and systems
Size: 1 cell
Version: 1.0 · 2026-10-19
Plan: Pro
Simulators: MSFS 2020 · MSFS 2024 · X-Plane 11 · X-Plane 12

Variants

C172 stylev1.0

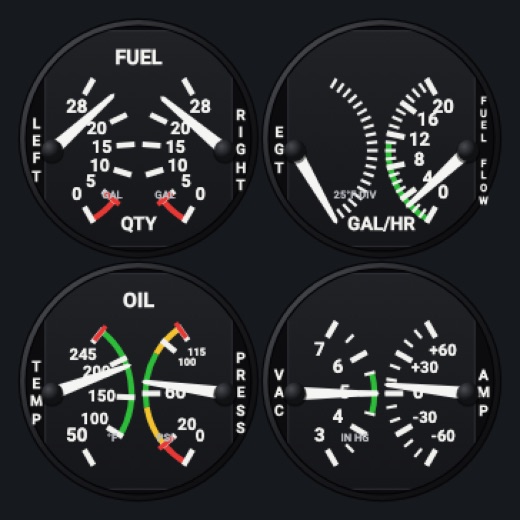

Four round cluster gauges two over two: FUEL QTY and EGT / FUEL FLOW over OIL and VAC / AMP (the engineCluster instrument)

Picker: Engine gauges (4 in 1), FACE: C172 style

C152 stylev1.0

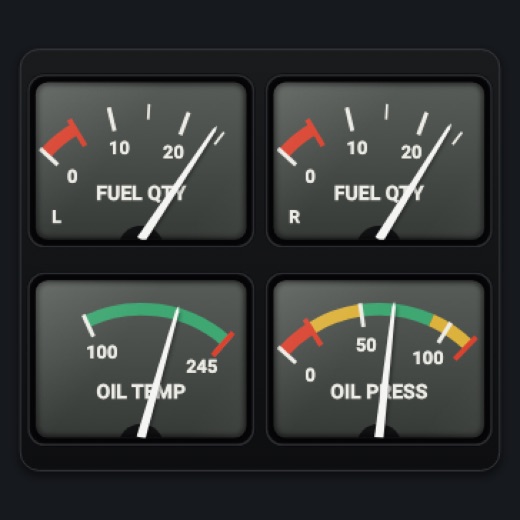

Four small rectangular dials: FUEL QTY L and R over OIL TEMP and OIL PRESS

Picker: Engine gauges (4 in 1), FACE: C152 style

Features

C152 face: two over two, FUEL QTY L and R, OIL TEMP and OIL PRESS, scales, muted arcs and red lines from the profile; long white needles with a shadow, glass reflection over each face
C152 face: red X over the strip when any of the four values is missing or stale; realistic needles (Settings) move its needles
C172 face: the 172's round cluster gauges at half size, each with its own scales, bands and red lines from the profile; the EGT dial shows the same yellow reference needle as the EGT / fuel flow gauge
C172 face: no red X and no realistic-needle motion (it draws the raw values)
Night lighting: the face takes the panel's red flood light, the glareshield's warm light from above (stronger for instruments higher on the page) and its own light, a lamp hidden at the top of the case lighting the dial downward (Settings > Dimmers: Red flood light, Glareshield, Instruments (analog)); the C172 face gets a lamp over each of its four gauges

Your aircraft: Tank size, oil, EGT, fuel flow and suction limits from the profile (wide default scales without bands on a generic profile).

On the iPad

No knobs: a tap asks to change the instrument

Settings

FACE: C172 style, C152 style (instrument picker)
Global: Realistic needles (C152 face)

Simulator data

What the Hub reads from the simulator for this instrument, and what the instrument sends back. Names are the simulators' own: MSFS SimVars and events, X-Plane datarefs and commands.

Reads

Value	MSFS	X-Plane
Left main tank quantity (gal)	`FUEL TANK LEFT MAIN QUANTITY (gallons)`	`sim/cockpit2/fuel/fuel_quantity[0]`
Right main tank quantity (gal)	`FUEL TANK RIGHT MAIN QUANTITY (gallons)`	`sim/cockpit2/fuel/fuel_quantity[1]`
Oil temperature, engine 1 (degF)	`GENERAL ENG OIL TEMPERATURE:1 (fahrenheit)`	`sim/cockpit2/engine/indicators/oil_temperature_deg_C[0]sim/aircraft/engine/acf_max_OILT`
Oil pressure, engine 1 (psi)	`GENERAL ENG OIL PRESSURE:1 (psi)`	`sim/cockpit2/engine/indicators/oil_pressure_psi[0]`
Exhaust gas temperature, engine 1 (degF)	`GENERAL ENG EXHAUST GAS TEMPERATURE:1 (fahrenheit)`	`sim/cockpit2/engine/indicators/EGT_deg_C[0]sim/aircraft/engine/acf_max_EGT`
Fuel flow, engine 1 (gal/h)	`ENG FUEL FLOW GPH:1 (gallons per hour)`	`sim/cockpit2/engine/indicators/fuel_flow_kg_sec[0]`
Vacuum / suction (inHg)	`SUCTION PRESSURE (inHg)`	`sim/cockpit/misc/vacuum`
Ammeter, + charging (A)	`ELECTRICAL BATTERY LOAD:1 (amperes)`	`sim/cockpit2/electrical/battery_amps[0]`
